The functionality, flexibility, and ability of any robotic system rely significantly on its robot joints. Robot joints permit complex tasks and precise movements in everything from factory floors’ industrial robotic arms to animatronics in the entertainment industry.
Thus, anyone designing or working with robotic systems should be well familiar with the various types of robot joints and their respective applications. This article will examine the numerous types of joints in robotics, their purposes, and how they are used in diverse sectors.
What Are Exactly Robot Joints?
The worldwide top robotics market is anticipated to reach USD 150.84 billion by 2030, indicating the constant introduction of advanced technologies. One such technology is Robot joints that are moveable joints that link various parts of a robot’s body, much like human joints. These connections let robots move, bend, and twist in diverse ways, which allows them to do their jobs and interact with the world around them.
Many different types of robot joints exist. For example, robotic grippers and other devices feature sliding joints, while arms and legs utilize rotating joints. Typically, these joints contain mechanical parts, actuators, and sensors that assist in achieving proper positioning and controlling motion.
Also Read: What are the Main Components of Humanoid Robots? Check Here!
Functions of Robot Joints
The types of joints in robotics greatly influence their capabilities. The following are some of the fundamental functions:
- Accurate Movement: Robotic joints make accurate positioning possible. It is essential in sectors such as medical robotics and electronics assembly.
- Enhanced Range of Motion: In addition to enabling sophisticated motions, joints also make it possible for robots to work in settings that are multidirectional.
- Effective Task Performance: Selecting the appropriate joints for a robot significantly impacts its efficiency. Thus, this consequently enables the robot to act faster and more accurately.
- Weight Support and Load Distribution: Some joints, particularly cylindrical and prismatic joints, can hold a lot of weight. Also, this feature makes them perfect for industrial robots that have to move heavy things.
Also Read: What Are Legged Robots? Examples, Definition and How it Works?

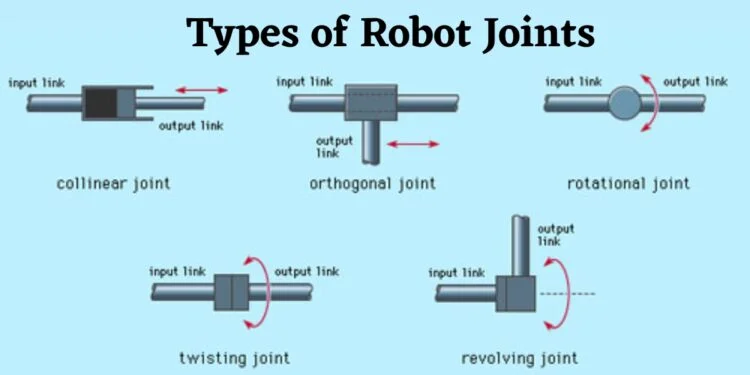

Different Types of Robot Joints
Source: sciencedirect
Robot joints exist in several types, each designed to execute a specific range of motion. The following are the most common types of joints in robotics:
- Revolute Joints
Often called rotary joints, revolute joints are perhaps the most prevalent kind seen in robotic arms. Like a door hinge, they let items move in just one direction. Rotary joints are crucial for robotic systems since they let things move in a precise way, such as when welding or developing things.
- Prismatic Joints
Prismatic joints, also known as sliding or linear joints, allow for a single axis of linear movement. Similar to a telescope, this kind of joint will enable robots to expand or retract its sections.
- Cylindrical Joints
By combining the motions of prismatic and rotary joints, cylindrical joints enable sliding and rotation along a single axis. Robotic applications that need both linear and rotational motion often utilize this combination because it offers more flexibility.
- Planar Joints
Two linear motions and one rotating movement are possible within the same plane thanks to planar joints, which enable movement across a plane. Robotics Joints configurations that need restricted mobility over a flat surface often employ this kind of joint.
- Spherical Joints
Like human shoulder joints, spherical joints may rotate on three perpendicular axes. They are essential in tasks that call for a great deal of mobility due to their extensive range of motion.
- Universal Joints
Rotation around two perpendicular axes is possible with universal joints. These find widespread use in mechanical and robotic applications that need flexibility but do not have the luxury of complete rotational freedom. Moreover, universal joints work well in joint engineering applications where two components must transfer torque at different angles.
Also Read: How to Train a Robot with Motion Capture or Hand Gesture?
Applications of Robot Joints
Numerous sectors make use of joints in robotics, including:
- Automation and Manufacturing
Robotic joints play a crucial role in production by enabling robotic arms to assemble, weld, and package goods. Users often employ prismatic and rotary joints, emphasizing the importance of high accuracy and durability.
- Robotics in Medicine
Robotic joints allow precise movements for diagnostics, surgical procedures, and even recovery. The choice of joint reflects the need for extreme sensitivity and accuracy. Spherical and cylindrical joints often replicate human motions in this discipline.
- Defense and Aerospace
Robotics Joints in aerospace enable robots to carry out duties in harsh environments, such as underwater or in space. Besides, spherical and universal joints offer flexibility and durability, which are essential for thriving in challenging environments.
- Entertainment and Animatronics
Characters in theme parks, motion pictures, and other entertainment settings may move realistically thanks to animatronic joints. Because of their range of motion and realistic motions, universal and spherical joints are perfect in this sector.
- Agriculture
Crop sorting, harvesting, and planting are all done by robots with sophisticated joints. Here, cylindrical and planar joints are helpful because they enable robots to navigate and reach open areas with different topography.
- Surveillance and Inspection
In surveillance, robots having mechanical joints that can move in both rotational and linear directions are often used. Additionally, these robots can travel across a variety of terrains and carry out duties in confined areas thanks to their cylindrical and rotational joints.
Potential Future of This Advanced Technology
Advances in biomimicry, soft robotics, and artificial intelligence are all directly related to the future of robotic joints. The following are significant upcoming developments:
- Sensor-Integrated Smart Joints: Joints will be able to automatically adjust to shifting activities or situations thanks to real-time feedback systems.
- Utilizing Flexible and Lightweight Materials: Energy efficiency and joint wear reduction are two areas where materials like smart polymers and carbon fiber are anticipated to enhance.
- Enhanced Utilization of Artificial Muscles: The ability of soft joints built of electroactive polymers to replicate the behavior of biological muscles expands their use in prosthetics and healthcare.
- Micro-Robotics Miniaturization: Nanorobots, which can perform microsurgery and medication administration, are undergoing the development of precision micro-joints.
- Cobots (collaborative robotics): Robots that operate alongside people now have access to more advanced joint designs that assure their safety and flexibility.
Conclusion
Robotic joints, the building elements of robotic systems, are essential to robot functioning and performance. Designing, controlling, and operating these joints requires knowledge of mechanical engineering, electrical engineering, and computer science. So, now, technology keeps pushing the limits, creating more efficient, dependable, and adaptable robotic systems despite the limitations.
